Home » MP3 » Background music system
Product Details

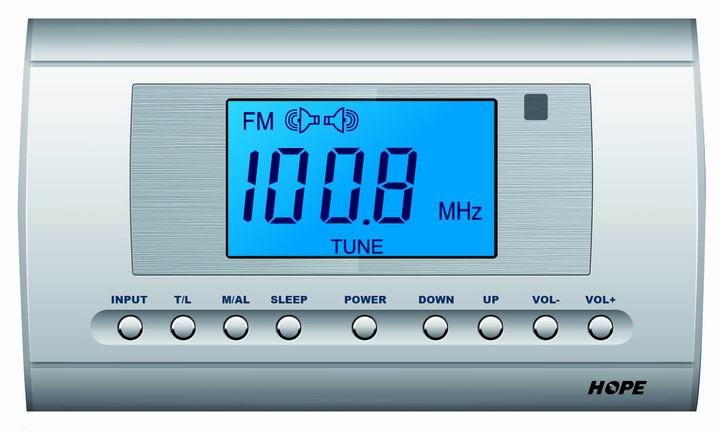

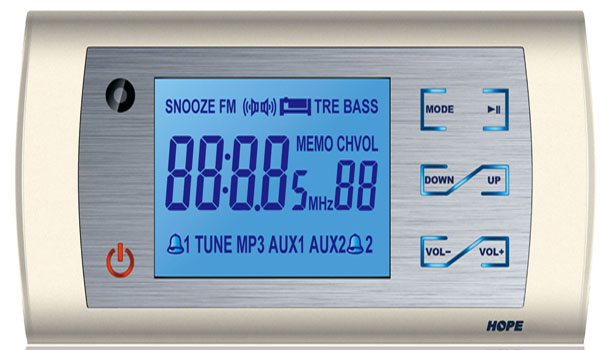

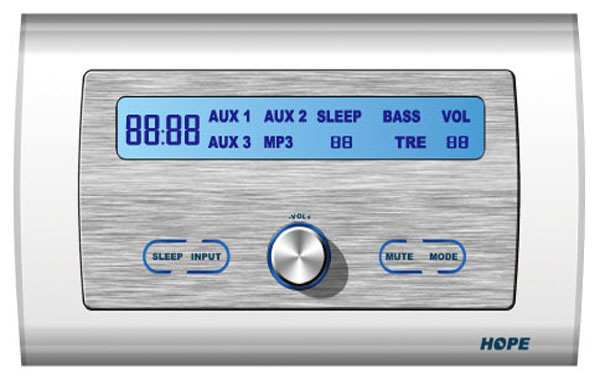

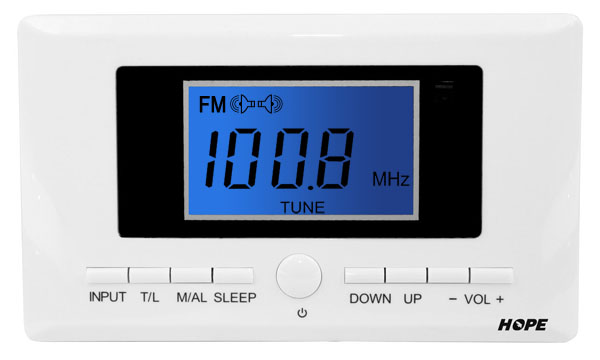

Product Model: BM-1
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 54mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!

Product Model: BM- 2
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 58mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!
Product Model: BM- 3
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 58mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!
Product Model: BM- 4
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 54mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!
Product Model: BM- 5
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 54mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!
Product Model: BM- 6
Power Supply: AC220V 50HZ
Output power: 6W +6 W (MAX)
Output Impedance: 4Ω
Total harmonic distortion: 0.03%
Frequency Response 20Hz-20KHz
Memory Card Capacity: 32M-4G
IR remote control distance: ≤ 10M
Product size: 146 * 86 * 54mm
embedded products use to remind the company provides complete end-box, size: 146 * 86 * 60MM! just need a good two kinds of wire cloth: 220V power cord, the output to the speaker on the audio line,currently the industry's most simple wiring pattern! More use of the product, see the instruction manual!

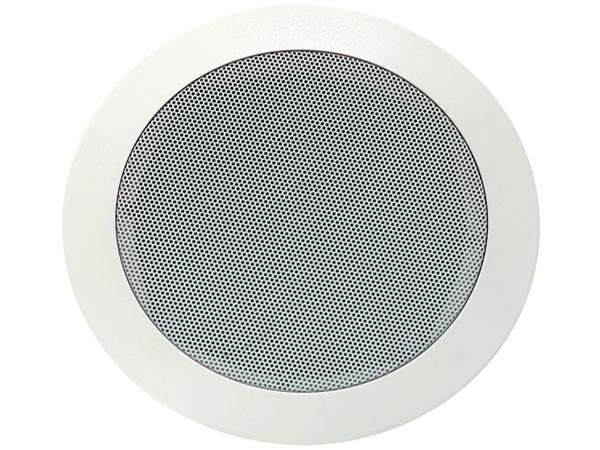

Product Model: BM- 7
Rated Power: 10W
Nominal Impedance: 8Ω
Frequency Response: 60HZ-20kHZ
Sensitivity: 91 ± 2dB
Speaker Unit: 5 "x1
Hole Size: ∮ 144-150mm
External Dimensions: ∮ 174 × 96mm
advise the use of Place: usually in a place where the ceiling the use of the space ceiling height of not less than 10CM!
Cable: The product system uses 1 kinds of cable applications: Audio wire (commonly known as metallic yarn ):
RVH2 * 100 RVH2 * 200!
Detailed usage instructions, see the product!

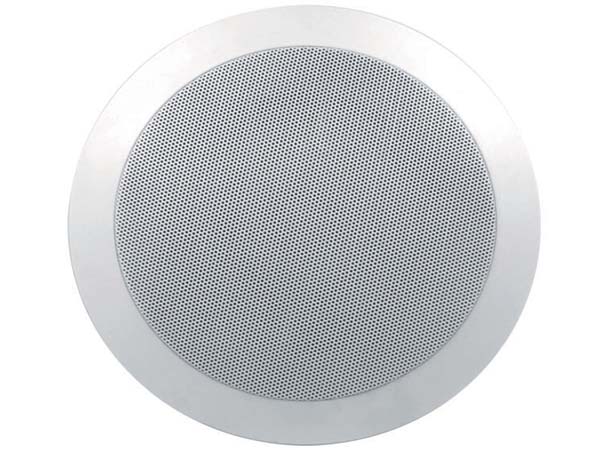

Product Model: BM- 8
Rated Power: 30W
Nominal Impedance: 8Ω
Frequency Response: 60HZ-20kHZ
Sensitivity: 91 ± 2dB
Speaker unit: HIGH FREQ 1 "LOW FREQ 6.5"
Hole Size: ∮ 195-198mm
External Dimensions: ∮ 230 × 78mm
advise the use of Place: usually in a place where the ceiling the use of the space ceiling height of not less than 80mm!
