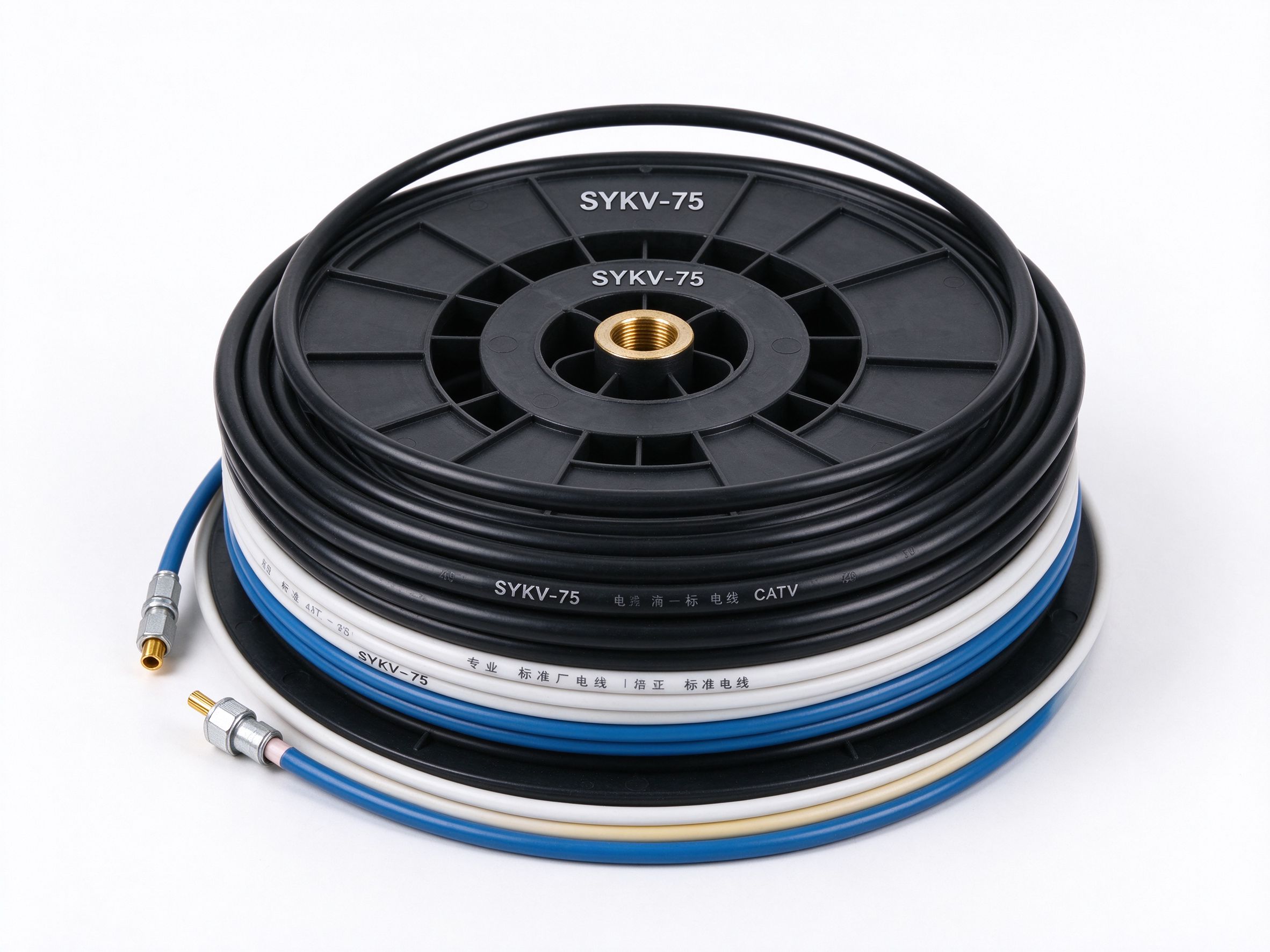

SYKV-75
TYPE RADIO FREQUENCY COAXIAL CABLE
PRODUCT INTRODUCTION:
With semi-air as insulation,SYKV type polythene cotes root-shaped
medium
radio frequency coaxial cables have the following features,when applied to
telecommunication:
1.Low transmission loss wide working frequency band
2.Light weight,easy to install
3.Stable & reliable electric properties
SYKV type coaxial cables are suit for the transmission system of VHF &
UHF signals in CATV and closed circuit television ,as feed lines of trunk
lines,branch lines and other electronic equipment the system.
|
  |
| SYKV-75 Type Cable Structures Measure |
| SYKV-75 |
-5 |
-7 |
-9 |
-12 |
| inner conductor (mm) |
1.00 |
1.60 |
2.00 |
2.60 |
| insulation (mm) |
4.80 |
7.25 |
9.00 |
11.50 |
| outer conductor (mm) |
5.80 |
8.30 |
10.10 |
12.60 |
| over jacket (mm) |
7.50 |
10.60 |
12.60 |
15.60 |
| approximate net weight (kg/km) |
43 |
70 |
96 |
145 |
SYKV-75 type cable electric behavior
| SYKV-75 |
-5 |
-7 |
-9 |
-12 |
| insulation
resistance(M .km) |
5000 |
5000 |
5000 |
5000 |
| dielectric
strength (KV) |
1.6 |
1.6 |
1.6 |
1.6 |
| capacitance(PF/m) |
56 |
56 |
56 |
56 |
| impedance(
) |
75 |
| return
loss
(dB) |
VHF |
20 |
20 |
20 |
20 |
| UHF |
18 |
18 |
18 |
18 |
| attenuation(+-0.5%)
constant
(dB/100m) |
50(MHz) |
5.3 |
3.4 |
2.8 |
2.2 |
| 200(MHz) |
10.8 |
7.1 |
5.7 |
4.5 |
| 300(MHz) |
13.0 |
8.6 |
7.1 |
5.4 |
| 500(MHz) |
17.0 |
13.2 |
9.3 |
7.5 |
| 550(MHz) |
17.8 |
12.6 |
10.0 |
8.0 |
| 800(MHz) |
22.9 |
15.2 |
12.5 |
10.0 |
| 1000(MHz) |
26.0 |
17.0 |
14.0 |
11.5 |
|
|
